As automation continues to develop across industries such as automotive components, new energy, home appliance hardware, 3C electronics, and general metal stamping, manufacturers are placing greater demands on production efficiency, equipment stability, and workshop space utilization.

Traditional coil processing lines often use separate machines for uncoiling and straightening. While this configuration remains suitable for certain applications, it may require more floor space and additional coordination between machines.

A 2 in 1 Uncoiler Straightener combines coil uncoiling and material straightening into one integrated machine. By reducing the number of separate units in the front end of a stamping line, it can help create a more compact and streamlined coil processing system.

So, what is a 2 in 1 Uncoiler Straightener, what are its main advantages, and how do you choose the right configuration for your production line?

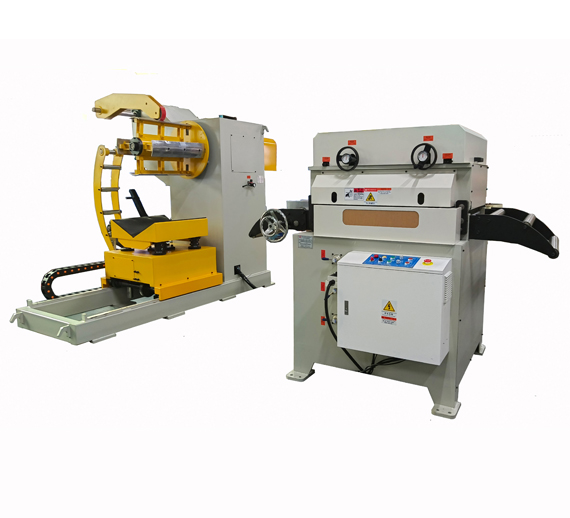

What Is a 2 in 1 Uncoiler Straightener?

A 2 in 1 Uncoiler Straightener, also known as an integrated uncoiler and straightener, combines two essential coil processing functions into a single machine:

Coil uncoiling

Material straightening

In a typical coil-fed stamping line, the metal coil is loaded onto the uncoiling section, where the material is continuously unwound. The strip then passes directly through the straightening section before entering the downstream feeding equipment.

A typical production process is:

Coil Loading → Uncoiling → Material Straightening → Servo Feeding → Stamping

By integrating the uncoiling and straightening processes, the machine can help simplify the equipment layout and reduce unnecessary material transfer stages in a coil processing line.

Key Benefits of a 2 in 1 Uncoiler Straightener

1. Save Floor Space with a More Compact Layout

Workshop space is an important consideration for many stamping manufacturers.

A traditional production line with a separate uncoiler and straightener requires space for two individual machines, as well as additional room for material transfer, machine spacing, and operator access.

An integrated Uncoiler Straightener combines these two functions into one system, helping reduce the overall equipment footprint.

This can be particularly beneficial for manufacturers that:

Have limited workshop space

Are upgrading an existing stamping line

Want to reduce the number of standalone machines

Need to optimize the layout of an automated production line

When combined with an appropriate servo roll feeder , the system can support a more compact coil feeding and stamping configuration.

2. Reduce Material Transfer Stages

In a traditional setup, the coil is unwound by the uncoiler and then transferred to a separate straightening machine.

This requires proper material guiding and alignment between the two machines. Equipment positioning and material travel can influence the stability of the production process.

With an integrated system, the material can move directly from the uncoiling section into the straightening section.

The production flow becomes more streamlined:

Coil → Uncoiling → Straightening → Feeding → Stamping

Reducing intermediate transfer stages can help improve material flow continuity and reduce the amount of manual intervention required during production.

For stamping operations that run continuously for extended periods, stable material handling is an important part of maintaining production efficiency.

3. Improve Material Flatness and Feeding Stability

Metal coils naturally develop curvature and residual stress during the coiling process.

If the material enters the feeder or stamping press without sufficient straightening, it may contribute to issues such as:

Material warping

Unstable feeding

Stamping position deviations

Reduced dimensional consistency

Unstable die loading

The straightening section uses multiple rollers to repeatedly bend and correct the material before it enters downstream equipment.

However, straightening performance depends on several factors, including:

Material thickness

Material hardness

Material strength

Material type

Straightening roller configuration

For this reason, the machine should be selected according to the actual material and production requirements rather than relying on a standard configuration alone.

Properly straightened material can provide a more stable foundation for accurate feeding and subsequent stamping operations.

4. Simplify Equipment Installation and Line Integration

Separate uncoilers and straighteners need to be installed, positioned, and adjusted independently.

The centerline alignment, material travel direction, and operating coordination between machines can all influence the stability of the production line.

A 2 in 1 Uncoiler Straightener integrates these two processes into one machine, reducing the coordination required between separate units.

This can help simplify:

Equipment layout

Installation planning

Material path configuration

Production line integration

For manufacturers building a new stamping line or upgrading an existing production system, an integrated coil processing machine can help reduce the complexity of the front-end equipment arrangement.

5. Support Automated Stamping Production

A 2 in 1 Uncoiler Straightener can be integrated with a servo feeder, NC feeder, and stamping press to form an automated coil-fed stamping line.

A typical configuration is:

Metal Coil → Uncoiler Straightener → Servo Feeder → Stamping Press → Finished Parts

Through coordinated operation between the equipment, the production line can support continuous material handling and feeding.

Compared with manual material loading and transfer, automated coil processing can reduce the need for frequent operator involvement.

For high-volume production, this type of automated configuration can also help improve production continuity and processing consistency.

Typical Applications of a 2 in 1 Uncoiler Straightener

A 2 in 1 Uncoiler Straightener can be used in a wide range of coil-fed stamping applications.

Typical industries include:

Home Appliance Hardware

Suitable for coil-fed production of metal panels, brackets, housings, and structural hardware used in home appliances.

New Energy Components

Can be integrated into automated stamping lines used for selected metal components in new energy manufacturing.

3C Electronics

Suitable for continuous processing of metal strip used in electronic components, housings, and precision stamped parts.

Metal Furniture and General Hardware

For metal furniture stamping, stable coil handling is important for maintaining continuous production of brackets, frames, support components, and other stamped metal parts.

A 2 in 1 Uncoiler Straightener can be integrated with downstream feeding and stamping equipment to create a compact coil processing system, helping manufacturers reduce equipment footprint and improve material handling efficiency.

This type of configuration can be particularly suitable for metal furniture manufacturers looking to upgrade existing production lines or optimize workshop space.

2 in 1 Uncoiler Straightener vs. Separate Uncoiler and Straightener

It is important to note that an integrated machine is not necessarily the best solution for every application.

For special materials, large coil sizes, or production lines requiring highly flexible equipment arrangements, separate uncoiling and straightening machines may be a more suitable option.

The final decision should be based on material specifications, production requirements, workshop space, and future expansion plans.

How to Choose the Right 2 in 1 Uncoiler Straightener

Before selecting a machine, manufacturers should evaluate the following factors.

1. Material Thickness

Material thickness directly affects the required straightening capacity and machine structure.

Different thickness ranges may require different roller configurations and straightening capabilities.

2. Material Width

The machine must be designed to accommodate the width of the material being processed.

Selecting the correct working width is essential for stable material handling.

3. Coil Weight

Coil weight determines the required load capacity of the uncoiling section.

The machine should be configured to safely support the maximum coil weight used in production.

4. Coil Inner and Outer Diameter

The coil inner diameter affects the required expansion range of the uncoiling mechanism, while the outer diameter influences the maximum coil size the equipment can accommodate.

5. Material Type and Strength

Different materials have different straightening characteristics.

For example, aluminum, stainless steel, and different grades of carbon steel may require different straightening configurations.

6. Required Production Speed

The production speed of the stamping line affects the coordination between the uncoiler, straightener, feeder, and press.

The complete system should be configured according to the actual production cycle.

7. Downstream Feeding Equipment

Manufacturers should also consider the type of feeding equipment used after the straightening process.

The 2 in 1 Uncoiler Straightener can be configured to work with an NC feeder, servo feeder, or other suitable feeding equipment depending on the production process.

8. Available Workshop Space

The actual workshop layout should be considered before installation.

Machine dimensions, material flow direction, operator access, and connection with downstream equipment should all be included in the production line planning process.

Providing complete material and production parameters to the equipment manufacturer can help ensure that the final configuration is better matched to the actual application.

Youyi Precision 2 in 1 Uncoiler Straightener Solutions

Youyi Precision provides stamping automation equipment for different material specifications and production requirements.

Our 2 in 1 Uncoiler Straightener solutions can be configured according to factors such as:Material thickness/Material width/Coil weight/Coil inner diameter/Coil outer diameter/Material type/Required production speed/Downstream feeding requirements

The equipment can be integrated with precision feeding systems and stamping presses to create an automated production process:

Metal Coil → Uncoiling and Straightening → Precision Feeding → Stamping

Depending on the application, the system can be used as part of an automated coil processing and stamping solution for industries such as automotive components, new energy, home appliance hardware, 3C electronics, metal furniture, and general hardware manufacturing.

By evaluating the material parameters and production requirements before equipment selection, manufacturers can choose a coil handling configuration that is better suited to their specific application.

Conclusion

The main advantage of a 2 in 1 Uncoiler Straightener is the integration of coil uncoiling and material straightening into a single machine.

Compared with a traditional configuration using separate equipment, an integrated system can help create a more compact production line, reduce material transfer stages, simplify front-end equipment integration, and support automated coil-fed stamping.

A typical production process can be summarized as:

Coil Loading → Uncoiling → Material Straightening → Servo Feeding → Stamping

For manufacturers looking to optimize workshop space, simplify equipment configuration, and improve coil processing automation, a 2 in 1 Uncoiler Straightener can be a practical solution.

However, the right equipment should always be selected according to the actual material specifications, coil parameters, straightening requirements, production speed, downstream equipment, and workshop layout.

Looking for a suitable 2 in 1 Uncoiler Straightener for your stamping line?

Youyi Precision can provide equipment selection and customized coil processing solutions based on your material and production requirements. Contact our team to discuss your coil handling and stamping automation project.
