Aluminum is widely used in new energy vehicles, power batteries, 3C electronics, home appliances, and precision metal components because of its low weight and good formability.

However, aluminum also presents a common challenge during stamping: its surface is relatively easy to scratch, score, or develop roll marks.

This becomes particularly important in continuous coil stamping. Before entering the stamping press, an aluminum coil typically passes through an uncoiler, straightener, and servo feeder. If there is contamination on a roll surface, excessive straightening pressure, improper material guidance, or a speed mismatch between components, continuous marks can appear on the aluminum strip.

For aluminum stamping parts with strict surface-quality requirements, a precision straightener machine does more than simply flatten the material. The equipment must also help minimize the risk of creating new surface defects during the straightening process.

Why Is Aluminum More Prone to Scratches and Roll Marks Than Steel?

Aluminum is relatively soft compared with many conventional steel materials. As a result, it is more sensitive to the condition of surfaces that come into contact with the material during coil feeding and straightening.

After an aluminum coil enters the straightener, it passes through multiple straightening rolls. The rolls apply repeated bending to gradually reduce the original coil curvature and improve flatness.

If the surface of a straightening roll contains contaminants such as:

• Metal chips

• Aluminum powder

• Oil or grease

• Rust

• Hard particles

• Processing debris

these particles can become trapped between the roll and the aluminum strip. As the material continues to move, they may create localized scratches, scoring, or indentations.

Excessive pressure between the upper and lower rolls can create another problem. When the aluminum strip is compressed too heavily, the concentrated pressure may leave roll marks or local deformation on the surface.

Therefore, aluminum straightening involves two separate requirements:

This is why equipment selection for surface-sensitive aluminum should not be based only on material thickness or line speed. Roll surface treatment, cleaning access, pressure adjustment, and the overall material path should also be considered.

How Does a Precision Straightener Machine Reduce Scratches on Aluminum?

Start With the Straightening Rolls

The straightening rolls are one of the primary components in direct contact with the aluminum strip. For thin aluminum sheet, roll machining accuracy and surface condition can have a direct effect on material quality.

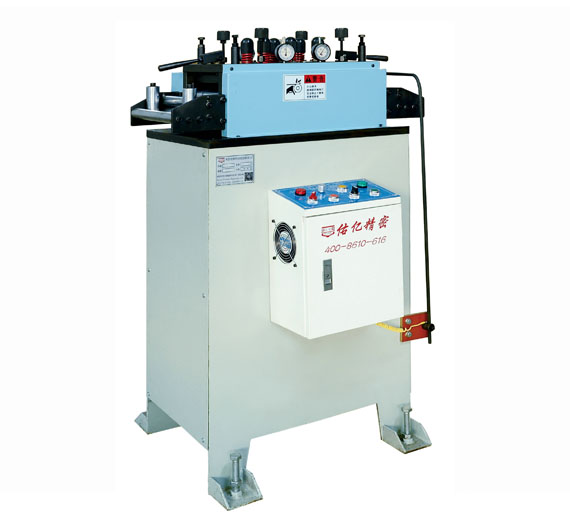

For example, the YouYi SNL Series Precision Straightener Machine is designed for thin metal materials in the 0.1–0.6 mm thickness range, including aluminum, stainless steel, and copper.

According to the product specifications, the straightening rolls are manufactured from SUJ2 steel and undergo heat treatment, hard chrome plating, and precision grinding. Roll cylindricity is controlled to ±0.002 mm.

This roll design addresses two important issues:

1. Reduce the Risk of Surface Defects From the Roll

If a straightening roll has burrs, scratches, or machining defects, the defect can be transferred repeatedly to the material as the aluminum strip continuously passes through the machine. A precision-ground roll surface provides a more consistent contact surface and can help reduce this risk.

2. Maintain More Consistent Roll Contact

If a roll has significant machining errors, the pressure applied to different areas of the material may not be uniform. For thin materials in the 0.1–0.6 mm range, even relatively small differences in roll contact can affect both surface quality and flatness.

Therefore, when selecting a precision straightener for aluminum, it is important to ask more than simply how many rolls the machine has.

Key questions include:

• What material are the straightening rolls made from?

• What heat treatment is applied?

• Is the roll surface chrome plated?

• How are the rolls finished?

• What machining accuracy is maintained?

Why Does Precision Straightening Use Multiple Small Bends?

An aluminum coil normally retains a certain amount of coil memory after uncoiling. If the material is subjected to only a few large bends, its shape can change quickly, but the deformation may be concentrated in specific areas.

Precision straightening uses a different approach. As the strip passes through multiple rolls, it undergoes repeated, relatively small alternating bends. This gradually changes the material condition and helps reduce problems such as:

• Coil curvature

• Edge or center waves

• Residual stress

• Unstable material feeding

Precision straighteners commonly use closely arranged work rolls and adjustable structures. The objective is not simply to increase the number of rolls, but to control the material through a series of smaller deformation steps.

Important straightener design parameters include the number of work rolls, roll diameter, roll spacing, and backup-roll configuration. For aluminum, distributing the straightening load across multiple rolls can also help avoid excessive localized pressure from a single roll. This can reduce the potential for localized indentations while maintaining the required flatness.

Why Can Excessive Straightening Pressure Cause Roll Marks?

One of the most common mistakes when straightening aluminum is assuming that more pressure will always produce better flatness. In practice, straightening pressure should not simply be increased when the material is not flat enough.

If the upper and lower rolls are adjusted too aggressively, the local pressure applied to the aluminum strip increases. This can result in:

• Roll marks

• Indentations

• Local deformation

• Thickness variation

• Differences in surface appearance

This is particularly important for mirror-finish aluminum, anodized aluminum, and other appearance-sensitive materials, where even relatively small roll marks can affect the appearance of the final stamped component.

The goal of a precision straightener is therefore not simply to increase pressure, but to achieve the required flatness through controlled straightening adjustment.

The YouYi SNL Precision Straightener Machine uses a floating four-point fine adjustment structure, with a dial indicator used to assist adjustment. This allows operators to make finer adjustments to the position of the straightening rolls.

In actual production, straightening adjustment should be determined according to:

• Aluminum thickness

• Material grade and condition

• Original coil curvature

• Required flatness

• Final product requirements

The rolls should be adjusted progressively rather than immediately applying excessive pressure.

Why Is Easy Cleaning Important for Aluminum Straightening?

When scratches appear on aluminum sheet, the servo feeder is often the first component checked. However, the scratch may have been created earlier in the material path.

After leaving the uncoiler, the aluminum strip enters the straightening section first. Therefore, the following components should also be inspected:

• Straightening rolls

• Material guides

• Supporting surfaces

• Other material-contact areas

If aluminum powder or hard particles accumulate on a roll surface, they can create continuous scratches as the strip passes through the machine.

For this reason, a precision straightener used for surface-sensitive aluminum should provide convenient access for cleaning and maintenance.

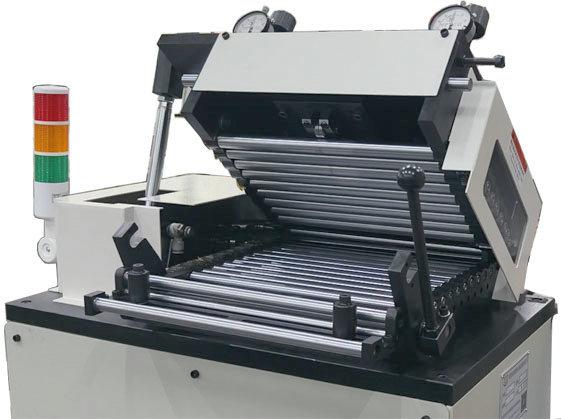

The YouYi SNL Series features a flip-open structure that allows the straightening-roll area to be opened for cleaning and maintenance, making it easier to remove contaminants from the roll surface.

A practical maintenance routine can include:

If continuous scratches are discovered, it is better to stop the machine and investigate immediately rather than waiting until an entire coil has been processed.

Why Is a Fully Driven Roll Structure Beneficial?

For conventional materials, passive straightening rolls can often perform basic straightening. For thin aluminum and other surface-sensitive materials, however, the relative speed between the material and the roll surface should also be considered.

If some rolls rotate passively while the material is moving, differences in roll speed or rotational resistance may result in relative sliding between the strip and roll surface. This relative sliding can become one potential source of surface friction marks.

The YouYi SNL Precision Straightener Machine uses a fully driven roll structure, allowing the straightening rolls to actively participate in material feeding and straightening rather than relying entirely on the strip to rotate some of the rolls.

However, a fully driven structure does not mean that scratches are impossible. Surface contamination, excessive pressure, incorrect material guidance, or improper machine adjustment can still create surface defects.

Therefore, the following factors should be considered together:

If Aluminum Has Scratches, Don't Check Only the Straightener

When obvious scratches or drag marks appear on aluminum, replacing the straightening rolls immediately is not necessarily the best solution. Instead, inspect the entire material path and identify where the scratch first appears.

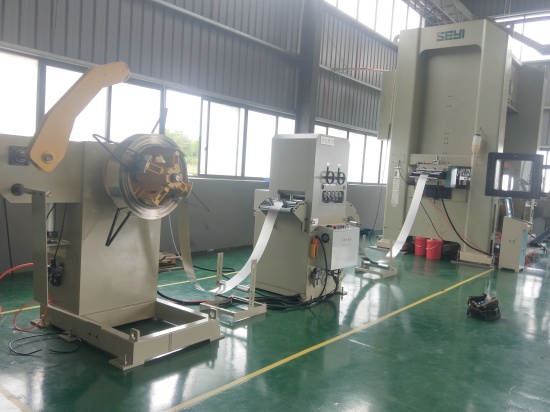

A typical aluminum coil stamping and feeding line may include:

Every contact point along this path can potentially create a surface defect.

Uncoiler

Check whether the aluminum strip is rubbing against machine edges or other components during uncoiling.

Material Guide

Check whether the guide width is properly adjusted and whether the guide plates have burrs, particles, or other contaminants.

Precision Straightener

Inspect the straightening rolls for:

• Aluminum powder

• Foreign particles

• Scratches

• Abnormal wear

• Surface contamination

Servo Feeder

Check the feeding-roll pressure and roll surface condition.

Stamping Die Entry

Check whether the material interferes with the edge of the die as it enters the stamping area.

If scratches are found, the most effective troubleshooting method is not simply to change machine parameters based on experience. Instead, identify the first point of contact where the defect appears and work backward from there.

Why Do Thin 0.1–0.6 mm Aluminum Sheets Need Precision Straightening?

Thin aluminum has relatively low stiffness. After uncoiling, it is more susceptible to coil curvature, waves, and residual stress. The YouYi SNL Series is designed for thin materials in the 0.1–0.6 mm range, including aluminum, copper, and stainless steel.

However, thickness alone should not determine the equipment configuration. For example, two aluminum materials may both be 0.5 mm thick but require different straightening parameters because of differences in:

• Alloy

• Material condition

• Strip width

• Coil condition

• Original flatness

For equipment selection, providing actual material samples or complete material specifications for a machine trial can help determine appropriate straightening parameters.

Can a Precision Straightener Solve All Aluminum Surface Problems?

No. This point is important when evaluating the role of a precision straightener machine.

If scratches already exist on the aluminum before it enters the straightener, the straightener cannot simply "flatten out" those scratches.

The main functions of precision straightening are to improve issues such as:

• Coil curvature

• Waves

• Residual internal stress

• Material instability before feeding

Surface scratches, however, can originate from many other sources, including:

• Raw material

• Uncoiling process

• Material guides

• Straightening rolls

• Feeding rolls

• Stamping dies

• Manual handling

• Friction against machine edges

Therefore, manufacturers processing appearance-sensitive aluminum should establish a complete surface-quality inspection and control process instead of relying solely on the straightening machine.

How to Configure a Precision Straightening and Feeding System for Aluminum Stamping?

For aluminum coils used in continuous stamping production, a typical configuration is:

For production lines where floor space is limited, an integrated 2-in-1 uncoiler and straightener can also be considered. YouYi offers 2-in-1 uncoiler and straightener equipment covering materials from 0.1–6.0 mm, with features including hard-chrome-treated rolls and photoelectric loop control. Integrated uncoiling, straightening, and servo feeding solutions are also available for aluminum materials used in lithium battery stamping applications.

The appropriate equipment configuration should be determined based on the actual production requirements, including:

• Aluminum material grade

• Material thickness

• Material width

• Coil weight

• Coil inner diameter

• Coil outer diameter

• Stamping press tonnage

• Strokes per minute

• Feed length per stroke

• Required product surface quality

For example, when processing 0.3–0.6 mm thin aluminum for appearance-sensitive or precision-stamped components, roll accuracy, fine adjustment capability, and surface protection should be considered before simply comparing maximum line speed.

Key Factors for Reducing Aluminum Scratches During Coil Stamping

Reducing scratches and roll marks on aluminum is not dependent on one machine feature. The following factors should be considered as a complete system:

• Precision straightening rolls

• Proper straightening pressure

• Fine roll adjustment

• Fully driven roll structure

• Easy cleaning and maintenance

• Correct material guidance

• Proper inspection of the complete material path

For thin aluminum in the 0.1–0.6 mm range, particularly in applications such as new energy vehicles, 3C electronics, and precision metal components, equipment parameters should ideally be verified through actual material trials rather than selected solely from a specification sheet.

Conclusion

Scratches, drag marks, and roll marks during aluminum stamping are usually caused by a combination of factors rather than a single machine component.

A precision straightener machine can help correct coil curvature, waves, and residual stress. At the same time, the straightening process itself needs to be properly controlled. Poor roll surface condition, excessive straightening pressure, contamination, or improper material guidance can introduce new surface defects.

For aluminum coil stamping, the key is to control the entire material-contact process:

For thin aluminum materials such as 0.1–0.6 mm, especially when processing appearance-sensitive or precision-stamped parts, machine parameters should be verified using the actual material and production requirements.

By maintaining the required flatness while controlling roll contact, pressure, cleanliness, and material guidance, manufacturers can reduce the risk of scratches, drag marks, and roll marks during aluminum coil stamping.
