How Does a Sheet Metal Decoiler Work?
A sheet metal decoiler operates by unwinding a coil from its inner diameter outward, feeding the sheet metal smoothly into downstream processes such as cutting, stamping, or rolling. Depending on the model, the decoiler may use an electric motor, hydraulic system, or manual effort to rotate the coil.
To maintain precision and control, sheet metal decoilers are often equipped with brakes, tensioners, and sensors, which regulate the speed and tension of the unwinding sheet. These features help prevent material deformation, misalignment, or coil tangling, ensuring a consistent feed into subsequent manufacturing operations.
Advantages of Using a Sheet Metal Decoiler
1. Improved Efficiency: Decoilers feed sheet metal directly into production equipment, reducing manual handling and streamlining workflow. This minimizes setup time and keeps production continuous.
2. Reduced Material Waste: Controlled and precise unwinding prevents overfeeding, edge damage, or coil deformation, helping to reduce scrap and maintain high-quality output.
3. Enhanced Safety: Safety features like brakes and sensors prevent uncontrolled coil movement, protecting operators and reducing the risk of accidents during production.
4. Increased Productivity: High-speed, automated unwinding allows for faster feeding of sheet metal coils, boosting overall production throughput and shortening manufacturing cycles.
Applications of Sheet Metal Decoilers
Sheet metal decoilers play a critical role in a wide range of industries by providing precise and controlled feeding of sheet metal coils into downstream processes. Key applications include:
1. Automotive Industry
Decoilers feed sheet metal coils into stamping machines to produce automotive components such as body panels, doors, frames, and structural parts. Accurate feeding ensures consistent part dimensions and smooth production flow.
2. Construction Industry
In construction, decoilers supply sheet metal to roll-forming machines for manufacturing roofing sheets, wall cladding, gutters, and other building components. Controlled feeding helps maintain uniform profiles and high-quality finishes.
3. HVAC Industry
Decoilers are used to feed sheet metal into duct forming machines, producing heating, ventilation, and air conditioning (HVAC) ducts efficiently. Proper tension and smooth unwinding prevent deformation and ensure precise duct dimensions.
4. General Manufacturing
Sheet metal decoilers support various processes such as cutting, bending, rolling, and forming across multiple manufacturing sectors. They enhance efficiency, reduce material waste, and maintain consistent quality in high-volume production.
By enabling accurate, safe, and high-speed coil feeding, sheet metal decoilers are an essential component in modern metal fabrication and manufacturing operations.
Factors to Consider When Choosing a Sheet Metal Decoiler
Selecting the right sheet metal decoiler is essential for efficient and safe production. Key factors to consider include:
1. Material Thickness: Ensure the decoiler can handle the thickness of the sheet metal you plan to process. Using a machine beyond its capacity may cause deformation or feeding issues.
2. Coil Weight: The decoiler must support the weight of the coil safely and reliably. Overloading can damage the machine and create safety hazards.
3. Coil Width: Verify that the decoiler can accommodate the width of your coils. Proper width compatibility ensures smooth feeding and prevents edge damage.
4. Coil Inner and Outer Diameter (ID & OD): The machine should fit the inner and outer diameters of the coils used in your operation. This ensures proper mounting, stable unwinding, and consistent feeding.
5. Available Floor Space: Consider the physical footprint of the decoiler to ensure it fits within your production area without interfering with other equipment or workflows.
6. Automation Features: Automation options such as sensors, brakes, and tension controls improve feeding accuracy, reduce operator intervention, and enhance production efficiency.
7. Safety Features: Safety mechanisms like protective guards, emergency stops, and controlled braking protect operators and other personnel during operation, ensuring compliance with workplace safety standards.
Maintenance and Care of Sheet Metal Decoilers
Proper maintenance of sheet metal decoilers is crucial to ensure long-term performance, reliability, and safe operation. Key maintenance practices include:
Regular Cleaning and Lubrication: Keep the decoiler clean and well-lubricated to prevent dirt buildup, reduce wear on moving parts, and maintain smooth operation.
Inspection and Replacement of Worn Parts: Periodically check for worn, damaged, or misaligned components such as rollers, bearings, and brakes, and replace them promptly to avoid operational issues.
Calibration: Regularly calibrate the decoiler to maintain accurate feeding, proper tension control, and consistent performance in downstream processes.
Proper Storage and Handling: When not in use, store the decoiler in a clean, dry environment and handle it carefully during relocation to prevent damage or misalignment.
Professional Sheet Metal Decoiler Manufacturer

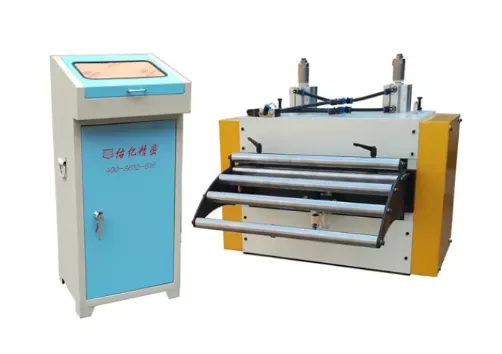

With years of experience in coil processing automation, YouYi Precision provides reliable sheet metal decoilers, Precision Straightener, servo roll feeder, and complete coil processing solutions for global manufacturing industries.
Our equipment is widely used in automotive, electronics, appliances, and new energy applications, helping manufacturers achieve stable, efficient, and automated production.
FAQ
What is a sheet metal decoiler?
A sheet metal decoiler is a machine used to unwind metal coils and feed sheet materials into stamping, cutting, forming, or rolling equipment.
What is the difference between a decoiler and an uncoiler?
A decoiler and an uncoiler refer to similar coil unwinding equipment. In industrial applications, the term decoiler is commonly used for coil feeding systems.
What materials can a sheet metal decoiler process?
Sheet metal decoilers can process steel, stainless steel, aluminum, copper, galvanized steel, and other coil materials.
How do I choose the right sheet metal decoiler?
Selection depends on coil weight, material thickness, coil width, inner diameter, outer diameter, production speed, and automation requirements.
Conclusion
Sheet metal decoilers are a vital part of modern manufacturing, providing controlled and precise unwinding of sheet metal coils for stamping, cutting, rolling, and other processes. By understanding their types, working principles, advantages, and applications—and by following proper maintenance practices—manufacturers can select the right decoiler for their operations, improving efficiency, productivity, and workplace safety.
