Press Transfer System

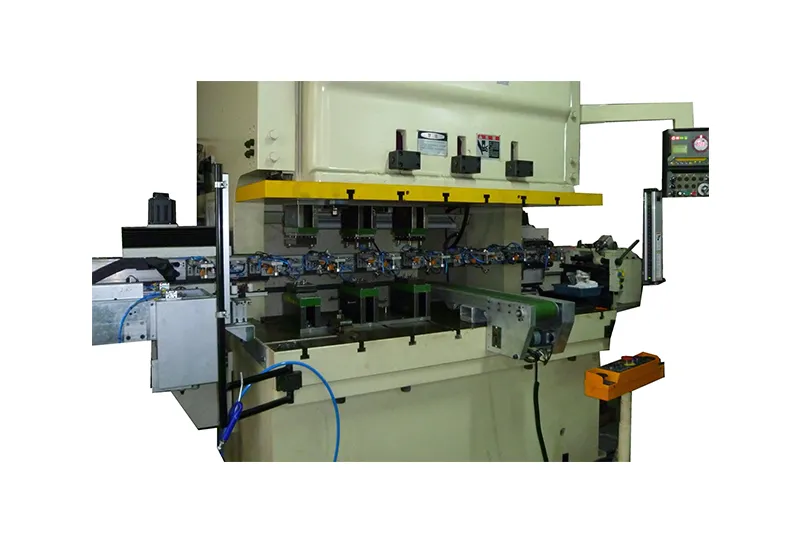

The single-press multi-station transfer system is an advanced automation device used in stamping production. It enables automatic material transfer between multiple stations within a single press, making it ideal for progressive die stamping, deep drawing, bending, and flipping operations. This robotic system is widely used in industries such as automotive parts, home appliances, electronics, and hardware stamping, significantly improving production efficiency, reducing labor dependency, and ensuring product consistency.
Product Characteristics
The TSS Single Press Multi-Station Transfer System is an advanced stamping automation solution designed to transfer workpieces between multiple forming stations inside a single press.
Unlike traditional production methods that require multiple presses and manual material handling, this servo transfer system enables automatic part movement through progressive forming stages within one stamping press.
By combining multi-axis servo motion control, customized gripper technology, and synchronized operation with the press cycle, the TSS transfer system improves production efficiency, reduces labor requirements, and ensures stable part quality.
It is widely used for:
Automotive structural components
Metal enclosures
Electrical components
Precision stamped parts
Complex deep-drawing applications
A single press transfer system automatically moves stamped parts between different stations inside one press.
The working process includes:
The press completes the first forming operation.
The transfer mechanism picks up the workpiece.
Servo-controlled movement transfers the part to the next station.
The next forming process begins.
The cycle continues automatically.
This continuous multi-stage forming process improves production efficiency while maintaining high positioning accuracy.
The TSS system adopts advanced servo motion technology to achieve precise part transfer.
Advantages:
High positioning accuracy
Smooth acceleration and deceleration
Programmable transfer movement
Stable high-speed operation
Reduced part damage risk
The servo-controlled system ensures reliable operation during long-term mass production.
Unlike conventional transfer lines requiring multiple presses, the TSS system operates inside one press.
Benefits:
Reduced equipment investment
Smaller production footprint
Lower maintenance cost
Simplified production management
It is an ideal solution for manufacturers seeking compact and efficient stamping automation.
Different stamped components require different handling methods.
The TSS transfer system supports customized:
Vacuum grippers
Mechanical fingers
Magnetic grippers
Special-shaped fixtures
The customized design allows stable transfer of various automotive and precision metal parts.
The transfer motion is synchronized with the press cycle.
This provides:
Shorter cycle time
Higher production output
Reduced waiting time
Improved overall equipment efficiency
The system is designed for flexible production requirements.
Advantages:
Faster tooling change
Reduced downtime
Improved production flexibility
Suitable for multiple product models
Multi-stage stamping of automotive brackets, beams, and structural components
Precision progressive forming of electrical enclosures, connectors, or consumer metal parts
Single press solutions for high-efficiency, cost-effective mass production
Integration with Complete Stamping Automation Line
The TSS transfer system can be integrated with:
Servo Press
For high-precision forming applications.
Compatible with:
Coil Feeding System
Including:
Servo feeder
Straightener feeder
Robotic Automation
For complete:
Coil Processing
↓
Stamping
↓
Transfer Handling
↓
Finished Part Collection
automation solutions.
Reduces the number of presses required, lowering capital and maintenance costs
Enhances process consistency by minimizing manual handling
Enables rapid changeovers and flexible production setups
Exceptional machine stiffness, ensuring high precision molding and extended mold lifespan.
Innovative capability to reverse the deep-drawing process between successive steps, enhancing process flexibility.
Improved formability of parts due to progressive preheating throughout multiple molding stages.
Compact design that delivers significant space savings in the production area.
| Item | Single Press Multi-Station Transfer Robot | Multi-Press Transfer Robot |
|---|---|---|
| Applicable Equipment | Single press with progressive or transfer die | Multiple presses in series |
| Structure Type | Multi-axis servo-driven, in-die transfer | Linkage-type system across multiple presses |
| Transfer Method | Transfers parts between stations within a single press | Transfers parts between multiple presses |
| Production Speed | High speed, ideal for small to medium parts | Moderate speed, suitable for large parts |
| Layout Requirement | Compact footprint, easy to integrate | Larger footprint, requires more floor space |
| Tooling Change Flexibility | Quick changeover, supports flexible production | Slower changeover, better for long runs |
| Applicable Material | Coil or sheet metal after decoiling & leveling | Typically used with blank sheets or pre-cut materials |
| Automation Integration | Easily integrates with servo press, 3-in-1 feeder, decoiler-straightener | Often part of a stamping island with loader/unloader systems |
| Main Applications | Automotive brackets, precision hardware, progressive stamping | Large panels such as car doors, beams, and structural parts |
| System Cost | Lower initial cost, cost-effective for flexible production | Higher initial investment, suited for high-volume production |
What is a single press multi-station transfer system?
A single press multi-station transfer system is an automation device that transfers parts between multiple forming stations inside one stamping press.
What industries use press transfer systems?
They are commonly used in automotive, electronics, electrical equipment, and precision metal stamping industries.
What is the advantage of a transfer system compared with manual handling?
It improves production speed, reduces labor costs, increases positioning accuracy, and provides more stable product quality.
Can the TSS system be customized?
Yes. Transfer stroke, gripper design, motion control, and integration methods can be customized according to customer requirements.
Technical Parameters
| Model | TSS-300/60 | TSS-400/60 | TSS-500/60 | TSS-600/60 |
| Transfer Distance(mm) | 300 | 400 | 500 | 600 |
| Lifting Distance(mm) | 60 | 60 | 60 | 60 |
| Load - Single Suction Arm(kg) | 0.5 | 0.5 | 0.8 | 1 |
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
