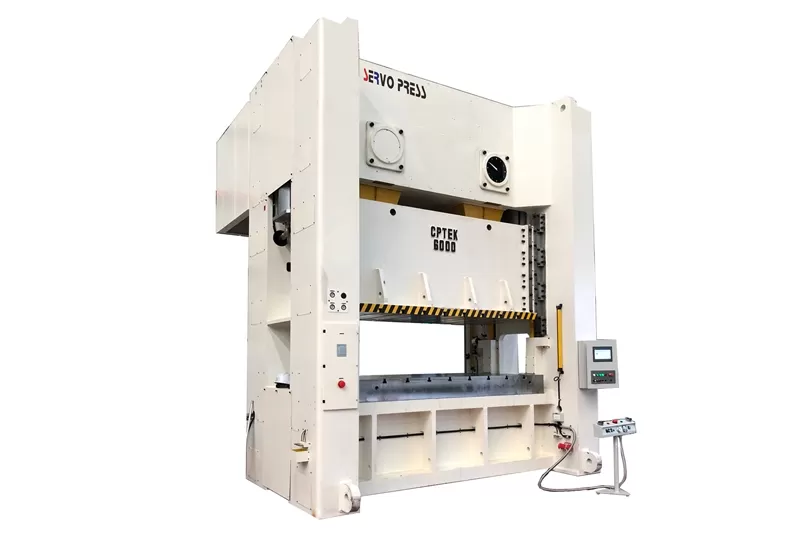

Servo Straight Press Machine for High-Precision Metal Forming and Stamping

The Youyi Servo Straight Press Machine is a high-precision servo stamping press designed for metal forming, deep drawing, and precision stamping applications. Its rigid closed-frame structure and programmable servo slide control provide stable forming performance, flexible motion profiles, and consistent production quality for automotive, new energy, electronics, and sheet metal applications.

Product Characteristics

Product Overview

The Servo Straight Press Machine is designed for metal stamping and forming applications that require controlled slide motion, repeatable processing conditions, and flexible production settings. By using a servo drive system to control slide movement, the press allows manufacturers to adjust motion parameters according to the material, die design, and forming process.

Compared with a conventional mechanical press using a fixed motion profile, a servo press can offer greater flexibility in slide speed, position, stroke, and motion characteristics. Depending on the press configuration and application, this flexibility can help manufacturers optimize forming conditions for complex parts and demanding stamping operations.

YouYi Precision provides servo press solutions for manufacturers seeking to integrate precision forming with automated material handling and stamping processes. The machine can be configured for suitable applications in automotive components, new energy products, electronics, home appliances, and general metal forming.

When selecting a Servo Straight Press Machine, it is important to consider more than nominal press capacity. Required forming force, die dimensions, stroke, operating speed, material characteristics, and automation requirements all influence the suitability of the press for a particular production process.

Key Features of the Servo Straight Press Machine

1. Rigid Press Frame for Stable Forming

The press frame provides structural support during stamping and forming operations. A properly designed rigid frame helps control structural deformation under load and maintain the alignment of the slide, die, and worktable.

Frame design, rated capacity, die dimensions, and loading conditions should be evaluated together when selecting a press for precision applications.

2. Programmable Servo Slide Motion

The servo drive system enables programmable control of slide movement. Depending on the machine's control capabilities, operators can configure motion parameters to suit different materials, dies, and forming processes.

This flexibility can be useful when a production process requires different slide motion characteristics during approach, forming, and return.

For deep drawing and other demanding forming operations, the appropriate motion profile should be established through process evaluation and die trials.

3. Flexible Speed and Stroke Settings

Different stamping operations may require different combinations of stroke, speed, and forming time. Servo press technology provides greater flexibility to adjust slide motion than a conventional fixed-motion profile.

The available settings and operating limits depend on the press model. Before selecting equipment, confirm the required stroke, production rate, and motion parameters for the intended application.

4. Repeatable Stamping and Forming Performance

Stable forming results depend on the combined performance of the press structure, servo control, die, material, and production settings.

A correctly configured servo press can provide repeatable slide movement and controlled forming conditions. This can support consistent production when the process parameters, tooling, and material specifications are properly managed.

Actual part accuracy depends on the complete production process rather than the press alone.

5. Potential for Improved Energy Management

Servo drive systems can control motor operation according to the programmed motion and production requirements. Depending on the operating cycle, machine configuration, and comparison equipment, this may help reduce energy consumption.

Actual energy performance varies with the application and operating conditions. Manufacturers should compare equipment specifications and expected production cycles when evaluating energy use.

6. Automation-Ready Configuration

The Servo Straight Press Machine can be incorporated into an automated stamping line with compatible material feeding and handling equipment.

Depending on the production process, integration options may include:

Servo coil feeders for controlled material feeding.

3 in 1 Decoiler Straightener Feeder systems for integrated coil processing and feeding.

Press transfer systems for moving parts between stamping stations.

Decoilers and uncoilers for coil handling.

Straightener machine for correcting material curvature before stamping.

The required configuration depends on the press design, die arrangement, production cycle, and control-system compatibility.

7. Integrated Safety Protection

Press safety must be considered throughout equipment selection, installation, commissioning, and operation.

Depending on the machine configuration, safety provisions may include emergency-stop functions, protective guards, overload protection, and other safeguarding systems.

The complete press line must be assessed as a system, including the press, die area, feeding equipment, transfer mechanisms, and operator access points. Safety functions should be selected and validated according to the applicable standards and the intended installation.

Applications of the Servo Straight Press Machine

A Servo Straight Press Machine can be configured for different metal stamping and forming applications, subject to the machine's rated capacity and process requirements.

Automotive Stamping

Automotive manufacturing includes a broad range of stamped components, such as brackets, reinforcement parts, structural components, and selected body parts.

Servo-controlled slide motion may be useful when the forming process requires specific movement characteristics. Equipment selection should consider material strength, part geometry, die design, and required production rate.

New Energy and EV Components

Electric vehicle and new energy manufacturing uses metal components such as battery covers, housings, terminals, brackets, and related structural parts.

The suitability of a servo press depends on the component's material, thickness, forming depth, dimensional requirements, and tooling arrangement. Surface quality and forming consistency should be evaluated through application-specific trials where necessary.

Electronics and Precision Metal Components

Electronic enclosures, metal brackets, heat sinks, connectors, and other small components may require controlled stamping conditions and repeatable production.

The required press capacity, stroke, speed, and die configuration should be determined from the part design and production process. For small precision components, the press must also be compatible with the required feeding and handling method.

Home Appliances and Sheet Metal Products

Appliance panels, housings, brackets, and hardware components are commonly manufactured through stamping and forming processes.

Servo press technology can provide flexible slide motion for suitable applications. The most appropriate configuration depends on the material, component size, tooling, and production volume.

Deep Drawing and Other Forming Processes

Deep drawing, bending, blanking, and other metal forming operations have different force, stroke, and motion requirements.

A servo press may be suitable for selected applications where programmable slide movement provides a process advantage. Before confirming a machine configuration, evaluate the forming load, die requirements, material behavior, and required cycle time.

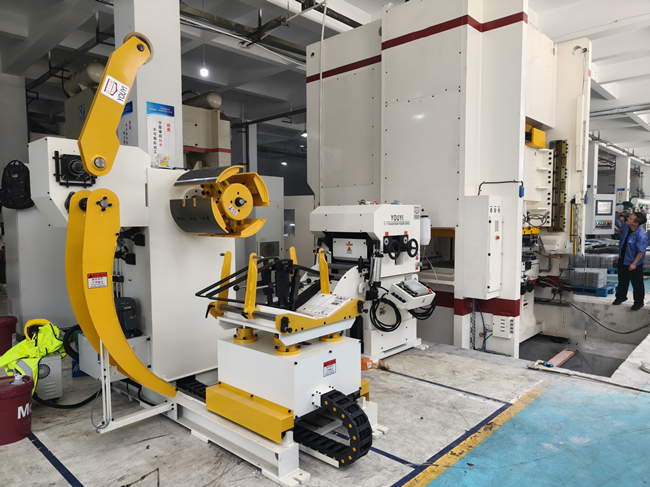

Servo Straight Press Automation Integration

The Servo Straight Press can be integrated with upstream and downstream automation equipment to create a complete automatic stamping production line.

Typical configurations include:

Coil → Uncoiler → Straightener → Servo Feeder → Servo Straight Press

For transfer stamping applications, the press can also be integrated with a press transfer system or robotic handling system.

Youyi provides complementary stamping automation equipment, including  servo coil feeders, uncoilers, straighteners, and 3-in-1 coil feed lines, allowing manufacturers to develop a coordinated coil-to-press production system.

This automation configuration helps reduce manual handling, improve feeding consistency, and support continuous high-volume stamping production.

Servo Straight Press

Servo Press vs. Conventional Mechanical Press

Servo presses and conventional mechanical presses can both be used for metal stamping. The most appropriate choice depends on the forming process, production requirements, machine configuration, and operating costs.

Comparison FactorServo PressConventional Mechanical Press
Slide motionProgrammable motion profiles, depending on the control systemGenerally follows a mechanically determined motion profile
Speed adjustmentMotion parameters can be adjusted within the machine's operating limitsAvailable speed settings depend on the press design
Process flexibilityCan support different motion settings for suitable applicationsSuitable for processes compatible with its motion characteristics
Energy performanceDepends on the servo system, motion profile, and operating cycleDepends on drive design, operating cycle, and machine condition
Application suitabilityUseful where programmable motion offers a process advantageSuitable for a wide range of conventional stamping applications
Selection priorityMotion flexibility and application-specific forming requirementsRequired capacity, production rate, process suitability, and operating economics


A servo press is not automatically the better option for every stamping application. Manufacturers should compare the required forming process, production rate, tooling, energy use, and total operating cost before making a decision.


How to Select the Right Servo Straight Press Machine

Choosing a servo press requires matching the machine's capabilities to the actual production process. The following factors should be confirmed before requesting a quotation.

1. Rated Press Capacity and Required Forming Force

Determine the maximum forming force required by the die and process. The selected press must be suitable for the application throughout the intended operating conditions.

Do not select a press based on nominal tonnage alone. Forming force, load position, operating conditions, and the manufacturer's rated-capacity specifications should all be reviewed.

2. Stroke and Slide Motion Requirements

The required stroke depends on the part geometry, die construction, material movement, and forming process.

If the application requires a specific slide motion profile, confirm that the press controller supports the necessary settings and that the profile is suitable for the intended process.

3. Production Speed and Cycle Time

Production targets influence the required operating speed and automation arrangement.

When evaluating the target cycle time, consider the complete process, including material feeding, press movement, part transfer, and any required inspection or handling steps. The achievable production rate depends on the machine configuration and application.

4. Die Dimensions and Worktable Requirements

The press must accommodate the die and the required installation arrangement.

Confirm the die dimensions, mounting requirements, available worktable area, slide dimensions, and any additional clearance required by the production process.

5. Material Type and Forming Characteristics

Steel, stainless steel, aluminum, copper, and other metals differ in strength, ductility, thickness, and forming behavior.

Provide the manufacturer with the actual material specifications and part requirements. These details help determine whether a servo press is suitable and which motion parameters or machine configuration may be required.

6. Automation and Control-System Integration

If the press will operate in an automatic production line, evaluate how it will communicate with the feeder, transfer system, die protection equipment, and other machinery.

The integration plan should cover operating sequence, required control signals, safeguarding, fault handling, and maintenance access.

For coil-fed stamping, a suitable upstream configuration may include a 3 in 1 Decoiler Straightener Feeder connected to the press. For multi-station stamping, a compatible press transfer system may be required.

FAQ About Servo Press Machine

1、What is a Servo Straight Press Machine?

A Servo Straight Press Machine is a stamping press that uses a servo drive system to control slide movement. Depending on the machine's capabilities, the slide speed, position, stroke, and motion profile can be adjusted to suit different metal forming processes.

2、What is the difference between a servo press and a mechanical press?

A servo press can provide programmable slide motion, while a conventional mechanical press generally follows a mechanically determined motion profile. The practical differences in production performance, energy use, and forming quality depend on the machine design and the specific application.

3、What materials can a servo press process?

Depending on its rated capacity and configuration, a servo press may process carbon steel, stainless steel, aluminum, copper, and other suitable metal materials. Material thickness, strength, part geometry, and forming force must be considered when selecting the machine.

4、Is a servo press suitable for deep drawing?

A servo press may be suitable for deep drawing when its capacity, stroke, slide motion, and tooling arrangement meet the process requirements. The material, forming depth, die design, and required production rate should be evaluated before selecting the press.

5、Can a servo press be integrated with automatic feeding equipment?

Yes. A compatible servo press can be integrated with servo feeders, coil processing equipment, and transfer systems. The complete line requires appropriate mechanical arrangements, control-system coordination, and safety integration.

6、What information is needed to select a servo press?

The main information includes required forming force, material type and thickness, part dimensions, die specifications, required stroke, production rate, and automation requirements. Part drawings and material details can help the equipment supplier assess the application.



Technical Parameters

   Paramater/ModelZXSM1-1100ZXSM1-1600ZXSM1-2000ZXSM1-3000ZXSM2-2000ZXSM2-3000ZXSM2-4000ZXSM2-5000
Nominal force(KN)1100 1600 2000 3000 2000 3000 4000 5000
Nominal force stroke(MM)5 5 5 5 6 6 6 6
Slide stroke length(MM)180 200 250 300 250 300 350 350

Unloaded continuous stroke number(SPM)
1~701~601~501~401~501~401~351~30
Die height(MM)350 400 450 550 500 550 650 650
Slide adjustment(MM)90 100 110 120 120 120 120 120
Slide area(LRXFB)(MM)800×520900×5801000×6501200×8501850×7502400×9002500×10002600×1100
Bolster area(LRXFB)(MM)1000×6801100×7601200×8401400×10002200×9402500×10002700×11002800×1200
Throat depth680×350760×450800×4501000×550900×600900×6001100×5501200×550
Servo main motor power(KW)63 63 84 111 84 111 157 209



Application
