Stamping Press Machine
The Punch Press is a compact and precise stamping machine designed for terminals, nameplates, and small metal components. With stable pneumatic drive and automation-ready design, it’s ideal for efficient small-scale production.
Product Characteristics

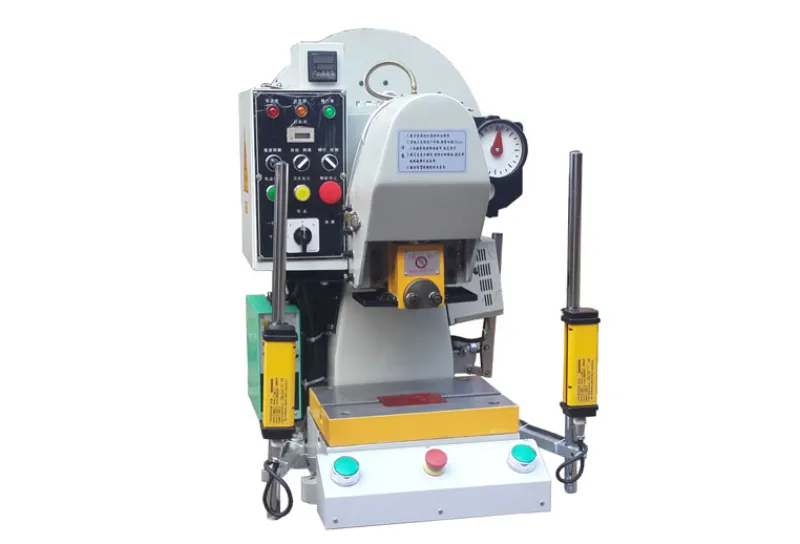

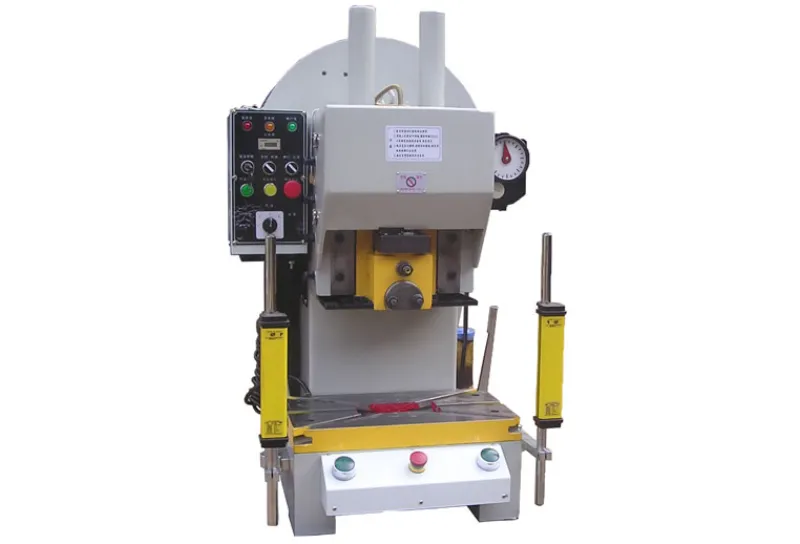

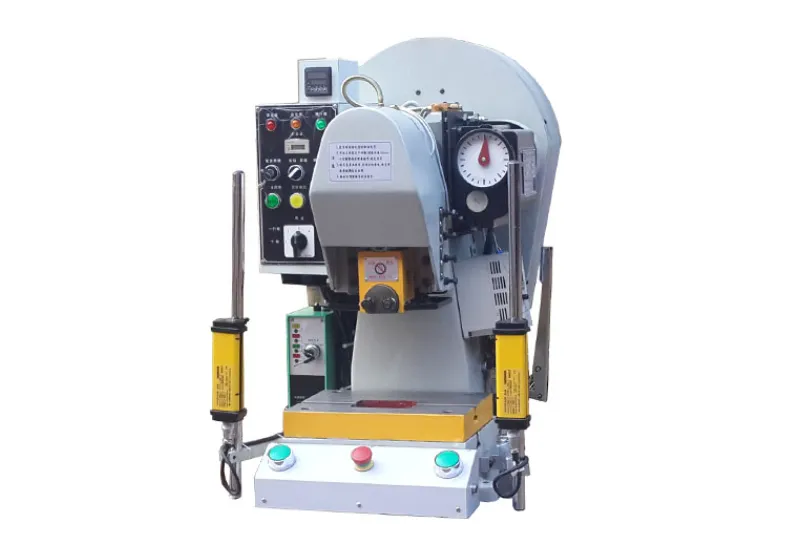

The TUP-5T/10T Precision Pneumatic Benchtop Punch Press is a compact stamping press machine designed for high-precision forming, punching, blanking, and embossing of small metal components.
Featuring a stable pneumatic drive system, rigid cast iron structure, and precision-guided slide mechanism, this compact punch press delivers excellent repeatability and consistent stamping performance for industries requiring accurate small-part production.
With a space-saving benchtop design, the TUP series is ideal for electronic terminals, metal nameplates, precision hardware, automotive small parts, and other lightweight stamping applications.
The machine can also be integrated with a servo feeder and automatic uncoiler to create an automated stamping production line, improving production efficiency and reducing manual operation.
The TUP series uses compressed air as the power source, providing smooth and reliable stamping force during continuous operation.
Advantages include:
Stable punching performance
Low operating noise
Fast response speed
Reduced maintenance requirements
Suitable for high-cycle stamping production
The pneumatic system ensures consistent output force, making it suitable for precision stamping of small metal components.
The machine adopts a rigid frame structure and precision-machined guide system to minimize vibration and deformation during operation.
Benefits:
Improved stamping accuracy
Stable slide movement
Reduced tooling wear
Longer service life
Better product consistency
This makes the TUP-5T/10T an ideal choice for precision stamping applications with strict dimensional requirements.
Designed for manufacturers with limited production space, the compact structure allows easy installation and flexible production line arrangement.
Features:
Small footprint
Easy relocation
Simple installation
Suitable for workshops and automated production cells
The benchtop configuration is especially suitable for laboratories, prototype production, and small-batch precision stamping.
The punching stroke and operating speed can be adjusted according to different materials and production requirements.
This flexibility allows the machine to process various thin metal materials including:
Stainless steel
Copper
Aluminum
Steel sheets
Brass strips
The TUP series is equipped with safety control functions to ensure reliable operation.
Safety features include:
Dual-hand operation buttons
Overload protection system
Stable mechanical structure
Easy maintenance access
These features improve operator safety while maintaining efficient production.
Reinforced cast structure minimizes deformation and absorbs vibration, improving stamping quality and equipment durability.
Widely used for punching, blanking, embossing, and forming of terminals, small sheet metal parts, and other precision components.

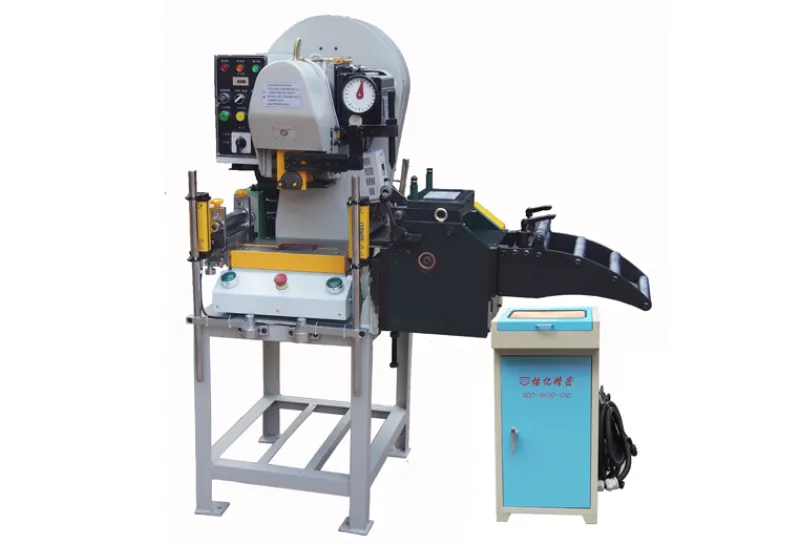

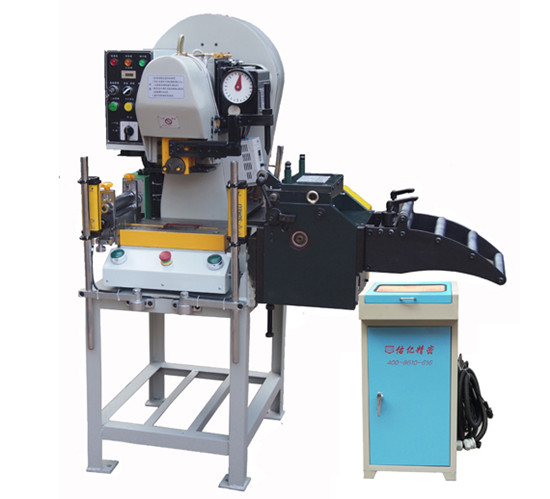

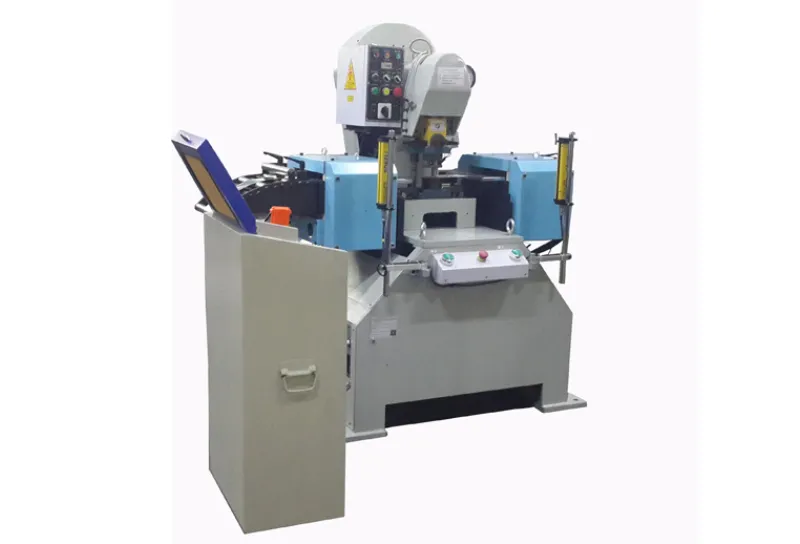

The Punch Press can be seamlessly integrated with a servo feeder and automatic uncoiler to achieve fully automated coil feeding and stamping. This setup enhances production efficiency, reduces manual handling, and ensures consistent material flow for high-precision stamping of terminals, metal tags, and small components.
What is a pneumatic benchtop punch press used for?
A pneumatic benchtop punch press is mainly used for punching, blanking, embossing, and forming small metal parts such as terminals, connectors, nameplates, and precision hardware components.
What materials can the TUP punch press process?
The machine can process various thin metal materials including stainless steel, copper, aluminum, brass, and steel sheets.
Can the TUP-5T/10T be connected with an automatic feeding system?
Yes. The punch press can be integrated with servo feeders, uncoilers, and PLC automation systems to achieve continuous automatic stamping production.
What industries use precision pneumatic punch presses?
They are widely used in electronics, automotive components, new energy, hardware manufacturing, and precision metal processing industries.
Technical Parameters
| Mode | TUP-5T | TUP-10T | |
| Ability | T | 5 | 10 |
| Slide stroke | mm | 2-40 | 50 |
| Number of trips | Spm | 200 | 200 |
| Maximum mold height | mm | 180 | 230 |
| Height adjustment | mm | 35 | 35 |
| Working desk size | mm | 240*340 | 500×300 |
| Workbench hole size | mm | 80*110 | 230*120 |
| Slider bottom area (length xwidth) | mm | 125*85 | 225×130 |
| Diameter of shank hole | mm | 25.4 | 38.1 |
| Motor | HP | 1 | 1 |
| Weight | Kg | 300 | 600 |
| Mechanical Dimensions | mm | 850x550x850 | 900x700x1200 |
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
Lower energy consumption compared to traditional presses, with higher operational efficiency, meeting green manufacturing standards.
2T/3T/5T Servo Electric Benchtop Precision Punch Press
Can be equipped with an optional NC servo feeder to enable automatic material feeding and punching operations.
1.5T Electric Benchtop Precision Compact Punch Press for Small Metal Stamping
Adopt roller clutch for accurate positioning. Absolutely single punch, safe operation. The design is exquisite and does not take up space. Smooth operation, low noise, easy to adjust and maintain.
Servo C-type Press adjustable pressure and speed to meet various processing needs, adaptable to multiple tasks.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How do I choose the right decoiler, straightener and feeder?
A: Select based on material type, width, thickness, coil weight, and required speed. Match decoiler capacity to coil size, choose a straightener for material strength, and a feeder that meets feed length and precision. Ensure compatibility with your press and automation level.
Q: Coil feeder vs servo feeder: what’s the difference?
A: A coil feeder is a broader system for continuous coil feeding, often integrated with decoiler and straightener. A servo feeder uses servo motors for precise, programmable feeding, ideal for short pitches and high accuracy applications.
Q: How to choose decoiler capacity?
A: Select a decoiler rated 10–20% above your maximum coil weight. Confirm inner diameter (I.D.) compatibility and outer diameter limits. Adjustable mandrels are recommended if you run multiple coil sizes.
Q: What feed precision can I expect?
A: Servo feeders typically achieve ±0.01–0.05 mm, with high-end models reaching ±0.005 mm. Mechanical feeders usually provide ±0.02–0.1 mm. Actual accuracy depends on material properties and straightening quality.
Q: How does material affect machine selection?
A: High-strength materials need stronger straightening and drive systems. Thin materials require low-pressure handling. Soft materials like aluminum need anti-scratch solutions.
Q: What affects feeding accuracy most?
A: Key factors include feeder precision, servo tuning, straightener setup, material quality, and press stability. Poor setup or worn dies can reduce accuracy.
Q: What spare parts should be prepared?
A: Common spares include bearings, belts, sensors, seals, guide blocks, and lubrication parts. Keeping key components reduces downtime and improves maintenance efficiency.
Q: Can feeders be retrofitted to existing presses?
A: Yes, most systems support retrofitting. Check press dimensions, feed height, control compatibility, and safety requirements before installation.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What is the maintenance cycle?
A: Daily cleaning and inspection; weekly check belts, air lines; monthly inspect bearings and guides; yearly replace worn parts. Adjust frequency based on operating hours and workload.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Q: What is the typical lead time?
A: Standard machines usually take 4–8 weeks. Customized systems or full production lines may require 10–20+ weeks depending on complexity and production schedule.
