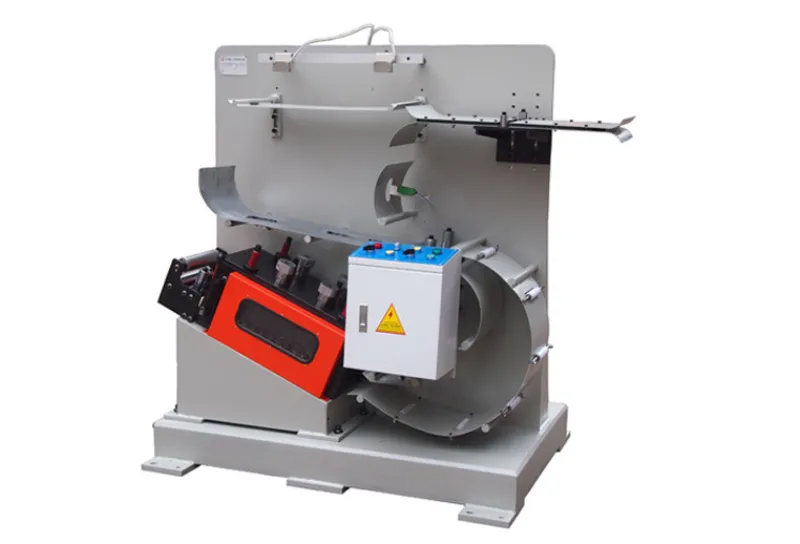

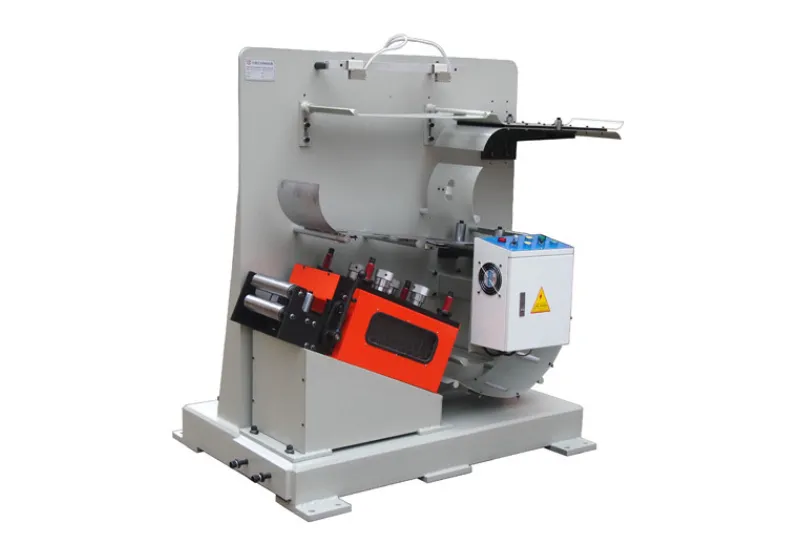

Straightener/Leveling Machine
The FJS S-Type High-Speed Straightener is designed for precision coil leveling and synchronized feeding in high-speed stamping applications. Equipped with an S-type material guidance system, variable speed control, and photoelectric sensors, it automatically adjusts operating speed to match the press, ensuring stable material flow and continuous production. Ideal for silicon steel, motor stator and rotor laminations, and other high-speed precision stamping applications.
Material Width: 150–300 mm
Material Thickness: 0.3–1.5 mm
Straightening Speed: Up to 60 m/min
Product Characteristics
The FJS High-Speed Straightener is designed for precision coil leveling in high-speed stamping applications. It is particularly suitable for processing thin metal strips and silicon steel used in motor stator and rotor lamination production.
Designed with an advanced S-type material guidance structure, the machine provides a smooth and controlled material flow between the decoiler, straightener, feeder, and high-speed stamping press. This compact feeding arrangement helps reduce unnecessary material buffering while maintaining stable synchronization throughout the production process.
With precision leveling rollers and a responsive control system, the FJS High-Speed Straightener helps improve material flatness, feeding stability, and production efficiency in continuous stamping operations.
The FJS High-Speed Straightener adopts an S-type material guiding structure that allows the coil material to move smoothly through the production line.
Photoelectric sensors monitor the material loop and automatically detect underfeeding or overfeeding conditions. The system works together with variable frequency speed control to maintain stable material movement and synchronization with downstream feeding and stamping equipment.
Compared with conventional material buffering arrangements, the S-type design helps reduce the required loop space while supporting stable high-speed operation.
The machine is designed to operate together with double-shaft decoilers, high-speed feeders, and stamping presses.
Its control system allows the straightening speed to be adjusted according to the operating conditions of the complete coil feeding line. This makes the FJS High-Speed Straightener suitable for continuous high-speed production environments where stable material flow is essential.
Typical applications include:
Motor stator lamination stamping
Motor rotor lamination stamping
EI transformer lamination production
Silicon steel stamping
High-speed progressive die applications
The FJS High-Speed Straightener is equipped with precision-engineered leveling rollers designed for stable straightening performance.
Roller configuration:
Number of rollers: 15
Roller diameter: 32 mm
Roller material: High-quality bearing steel
Heat treatment hardness: Up to HRC 60
Surface treatment: Precision grinding and hard chrome plating
The precision roller system helps improve material flatness while reducing the risk of surface damage during continuous operation.
Stable synchronization is essential in high-speed stamping production.
The FJS High-Speed Straightener uses variable frequency speed control together with photoelectric sensing to automatically respond to changes in material movement. The system can be integrated with upstream and downstream equipment to maintain a stable material supply.
This configuration helps improve production continuity and reduce the risk of unstable material feeding caused by excessive or insufficient material buffering.
The FJS High-Speed Straightener is designed for integration into automated coil feeding lines.
When combined with a double-shaft decoiler and high-speed servo feeder, the machine can form a compact and efficient coil handling system for motor lamination stamping.
This configuration supports:
Continuous coil processing
Reduced material buffering requirements
Stable high-speed feeding
Faster coil changeovers
Improved automation

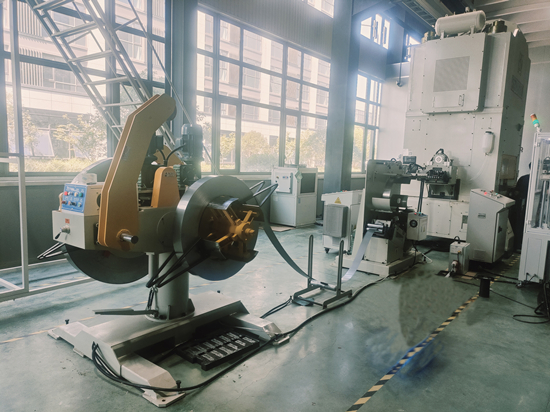

The FJS High-Speed Straightener is widely used in automated production lines for motor stator and rotor laminations.
A typical high-speed stamping line can include a dual-station decoiler, FJS High-Speed Straightener, high-speed servo feeder, and stamping press.
The decoiler provides continuous coil supply, while the straightener improves material flatness before the strip enters the feeder. The high-speed feeder then delivers the material accurately into the stamping press.
This coordinated production process is particularly suitable for silicon steel laminations used in electric motors, transformers, and other electrical components.
The system helps manufacturers achieve stable material handling during continuous stamping while supporting high-volume automated production.
Compared with conventional straightening machines, the FJS High-Speed Straightener is designed specifically for applications that require stable material control at higher production speeds.
Key advantages include:
S-type material guidance for smooth coil movement
Reduced material buffering space
Precision leveling rollers for improved flatness
Stable synchronization with high-speed feeding equipment
Suitable for silicon steel and motor lamination production
Easy integration into automated coil feeding lines
Designed for continuous high-speed stamping applications
For manufacturers producing motor stators, rotors, EI laminations, and other precision stamped electrical components, the FJS High-Speed Straightener provides a reliable solution for stable coil straightening and material handling.
What materials can the FJS High-Speed Straightener process?
The machine is suitable for thin metal strips and is particularly effective for silicon steel used in motor stator and rotor lamination stamping.
What material thickness can the machine handle?
The standard FJS High-Speed Straightener is designed for material thicknesses from 0.3 mm to 1.5 mm.
Can the FJS High-Speed Straightener be integrated into an automated coil feeding line?
Yes. It can be integrated with decoilers, high-speed servo feeders, and stamping presses to create a complete automated coil feeding system.
Why is an S-type material guidance system used?
The S-type material path helps create a smooth and controlled material flow while reducing the amount of space required for material buffering between machines.
Is the machine suitable for motor lamination stamping?
Yes. The FJS High-Speed Straightener is specifically designed for applications such as motor stator laminations, rotor laminations, EI laminations, and silicon steel stamping.
Technical Parameters
| Mode | FJS-150 | FJS-200 | FJS-00 |
| Feeding width mm | 150 | 200 | 300 |
| Feeding speed m/min | 60 | 60 | 60 |
| Speed mode | Frequency Conversion | ||
| Motor Kw | 0.75 | 1.1 | 1.1 |
| Feeding adjustment method | Automatic | ||
| Specification m | 1.1x1.5x0.5 | 1.1x1.5x0.5 | 1.1x1.45x0.5 |
| Weight kg | 1000 | 1100 | 1200 |
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
