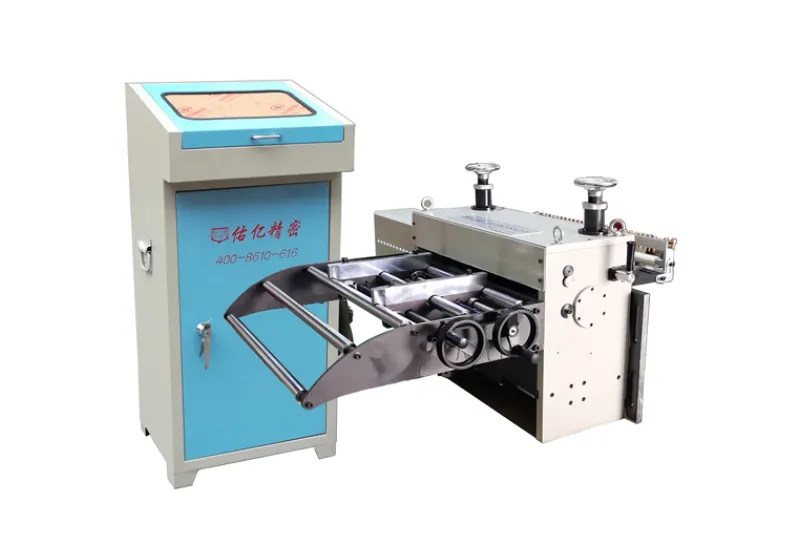

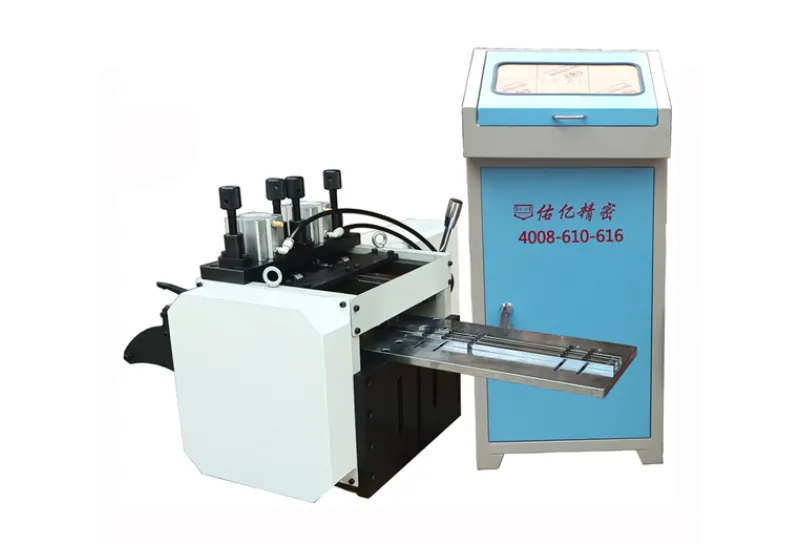

NC Servo Feeder
Designed for high-speed punching presses, the GNC High‑Speed Servo Feeder uses dual servo motors to achieve synchronized, high-precision feeding — up to 300 strokes per minute.
Product Characteristics
The GNC High-Speed Servo Feeder is engineered for high-speed press lines, delivering up to 300 strokes per minute. It supports dual-strip synchronous feeding, making it ideal for precision stamping of motor stators, rotors, and other components in high-speed progressive die applications
Maximum feeding speed up to 300 strokes per minute, perfect for high-speed press operations
Dual-strip synchronous feeding supports two coil strips at the same time for higher efficiency
High accuracy feeding with dual servo motor control system
Designed for motor stator and rotor stamping in high-speed progressive die production
User-friendly interface with touch screen and job memory settings
Stable structure to minimize vibration during ultra-fast operation
Can be integrated with uncoiler and leveler for full coil line automation

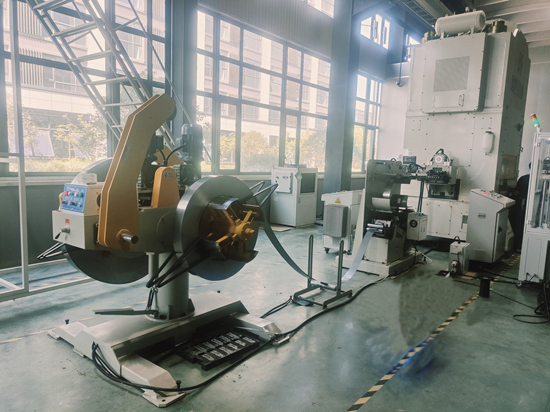

This high-speed stamping line is specially designed for precision manufacturing of motor stators and rotors. The system integrates a double-head decoiler, an S-type precision straightener, and a high-speed servo feeder, working in sync with a high-speed press to achieve efficient and accurate material handling.
The double-head decoiler allows quick coil changeover without stopping the line, ideal for continuous production. The S-type straightener ensures excellent flatness for thin laminated steel sheets, while the servo feeder delivers up to 300 strokes per minute with high positioning accuracy.
This setup is widely used in electric motor manufacturing, especially in high-volume production of EV motors, appliance motors, and industrial stator/rotor components.
Technical Parameters
| Model | GNC-200A | GNC-400A | GNC-600A | GNC-800A |
| Material width(mm) | 50-200 | 50-400 | 50-600 | 50-800 |
| Material thickness(mm) | 0.2-1.5 | 0.2-1.5 | 0.2-1.5 | 0.2-1.5 |
| Servo motor(KW) | 1.8KW | 2.9KW | 4.4KW | 5.5KW |
| Feeding speed(m/min) | 0-20 | |||
| Feeding roller | Up 1/ Down 1 | |||
| Feeding accuracy(mm) | 0.02 | |||
| Feeding length(mm) | 0-9999.99 | |||
| Air pressure(gkf/cm²) | 5 | |||
| Voltage(V) | AC 220V/380V | |||
| Feeding times | 400 times/min | |||
| Feeding direction | Left to Right / Right to Left | |||
| Reducer ratio | 1:3 | |||
Experience unmatched productivity with feeding speeds of up to 300 strokes per minute and positioning accuracy within ±0.02 mm. The dual-servo system enables precise control for multi-stage feeding, from 0–10 m per stroke, perfectly suited for high-speed and complex stamping applications.
The advanced PLC + touch screen control system allows for fast parameter setting, real-time monitoring, and one-click troubleshooting. Compared to traditional mechanical feeders, the setup is faster, smarter, and easier to train—dramatically reducing downtime.
Engineered to handle materials from 0.2 mm to 1.5 mm thick and up to 800 mm wide, the GNC series is ideal for high-volume, precision-demanding applications. It supports dual-strip synchronous feeding and integrates seamlessly with your punch press line.
From automotive parts and 3C electronics to home appliances and new energy battery casings, Youyi’s GNC High-Speed Servo Feeder delivers consistent, reliable performance in even the most demanding environments.
With decades of expertise in coil feeding solutions, Youyi provides tailored equipment with fast lead times, comprehensive support, and high adaptability to various production needs. Every feeder is designed for durability, accuracy, and ease of use.
Upgrade your stamping line today with Youyi’s GNC High-Speed Servo Feeder. Optimize speed, accuracy, and reliability—contact our team now to get a quote or request a solution tailored to your production line.
Application
1600 Large-Scale New Energy Lithium Battery Aluminum Casing Blanking Dedicated Automated Stamping Line
Thick-Sheet 3-in-1 Decoiler, Leveler & Feeder System for Automotive Stamping Applications
Customized Dual-Uncoiler 3-in-1 Feeding Line for Automated Stamping of Smart Furniture Hardware Components
2-in-1 Decoiler & Leveling Machines with Servo Feeders: Enhancing Precision in 3C Industry Automation
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
Related Products
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.05mm
This machine is used to cut and level the feeding line with shearing machine (no need to release)
Thick Plate NC Servo Feeder (0.1-6.0mm)
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm
High-precision feeding: Aiming at the advent of high-tech industries, computer close-circuit feedback control is used to ensure accuracy within ±0.02mm
Dual servo feeder is suitable for high-speed punching machine, dual servo control, the feeding speed can reach 300 times per minute
This machine can perform multiple shifts according to the blanking diameter of the water to ensure the circular cutting of the material, which maximizes the utilization of the material. If size of the blank is not equal, it can automatically arrange the angle calculations to ensure maximum material saving
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
