3C Industry
A 3C electronic component manufacturer required a high-speed stamping solution for producing precision parts from ultra-thin stainless steel and copper coils. The production materials ranged from 0.05 mm to 0.50 mm in thickness and required stable feeding performance during continuous high-speed stamping.
Youyi designed an integrated high-speed coil processing line combining automatic decoiling, precision straightening, servo feeding, high-speed stamping, and automatic scrap removal. The system was developed to improve feeding stability, material flatness, production efficiency, and consistency for precision 3C electronic components.
The customer was producing miniature electronic components from ultra-thin stainless steel and copper strip. The existing production process required higher feeding stability and automation to support continuous high-speed stamping.
The main production challenges included:
Ultra-thin materials: Coil thickness ranged from 0.05 mm to 0.50 mm, making the material more susceptible to deformation and instability during feeding.
High-speed production: The stamping process required continuous and stable material feeding at high production speeds.
Precision requirements: Miniature 3C components required consistent feeding length and accurate positioning to maintain product dimensional quality.
Frequent coil changes: Manual material handling increased changeover time and operator workload.
Scrap handling: Manual collection of stamping waste reduced production efficiency and affected workshop cleanliness.
To address these requirements, Youyi developed an integrated coil processing and stamping automation solution tailored to ultra-thin metal strip production.

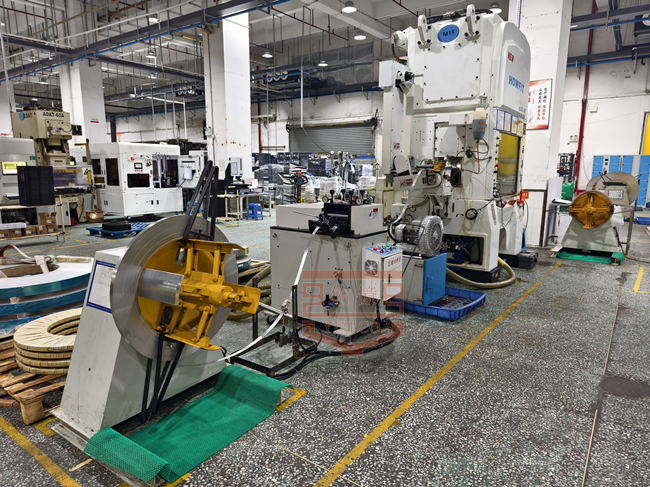

The production line consists of the following equipment:
The precision straightener uses a variable frequency drive (VFD) combined with intelligent electrical control to synchronize the upper and lower leveling rollers.
Key specifications include:
Material Thickness: 0.05–0.50 mm
Material Width: Up to 200 mm
Suitable Materials:
Stainless Steel
Copper
Aluminum
Cold Rolled Steel
Nickel Alloy Strip
The multi-roll leveling system effectively removes coil stress, wave defects, and edge deformation, ensuring excellent flatness before stamping.
The automatic uncoiler provides smooth and continuous coil unwinding while maintaining constant tension throughout production.
Its advantages include:
Stable coil support
Smooth material transmission
Reduced scratching of thin materials
Improved production continuity
The servo feeder precisely synchronizes feeding motion with the high-speed stamping press.
Key benefits include:
High feeding accuracy
Stable servo control
Programmable feeding length
Fast response speed
Reduced cumulative feeding errors
The system ensures reliable positioning even during long production runs.
The production line is matched with a high-speed stamping press capable of continuous operation for precision electronic components.
Typical applications include:
Connector terminals
EMI shielding covers
Battery contacts
Precision brackets
Camera module components
USB connector parts
Electronic clips
An automatic suction system immediately removes scrap generated during stamping.
Advantages include:
Cleaner production environment
Reduced downtime
Improved operator safety
Stable continuous production
The high-speed coil processing line is designed to maintain stable material movement from coil entry to finished stamping production.
Coil Loading → Automatic Decoiling → Precision Straightening → Servo Feeding → High-Speed Stamping → Automatic Scrap Removal → Finished Components
The automatic uncoiler continuously supplies the thin metal strip to the precision straightener, where coil stress and material deformation are reduced. The leveled strip is then transferred to the high-speed servo feeder for accurate and synchronized feeding into the stamping press.
During stamping, the automatic scrap suction system removes production waste from the press area, helping maintain a cleaner workspace and supporting continuous automated production.
This integrated process reduces manual material handling and helps maintain consistent feeding performance throughout long production runs.
Compared with conventional stamping production lines, the integrated high-speed coil processing line offers significant improvements.
Precision leveling removes internal stress before stamping, reducing defects such as burrs, wrinkles, and dimensional deviation.
The servo feeding system maintains consistent feeding accuracy even during high-speed operation.
Continuous automated operation reduces manual intervention and increases overall equipment utilization.
Accurate feeding minimizes positioning errors and improves material utilization.
Every production cycle maintains stable feeding length and stamping precision, ensuring consistent product quality.
| Item | Specification |
|---|---|
| Application | 3C electronic component stamping |
| Material | Stainless steel, copper, aluminum, cold-rolled steel, nickel alloy strip |
| Material Thickness | 0.05–0.50 mm |
| Material Width | Up to 200 mm |
| Production Type | High-speed precision stamping |
| Feeding System | High-speed servo feeder |
| Coil Processing | Automatic decoiling and precision straightening |
| Scrap Handling | Automatic scrap suction |
| Automation | Integrated coil processing and stamping automation |
The production line can be customized according to material characteristics, strip width, thickness, stamping speed, press specifications, and production requirements.
This high-speed coil processing line is widely used for manufacturing precision stamped parts including:
Smartphone internal structural components
Tablet metal parts
Laptop connectors
Battery terminals
EMI shielding components
Precision electronic brackets
Wearable device metal parts
USB and Type-C connector terminals
It is suitable for industries requiring high-speed precision stamping of ultra-thin metal materials.
With more than 27 years of experience in stamping automation equipment, Youyi provides integrated coil processing and feeding solutions for precision metal stamping applications.
The stamping automation solution can integrate automatic decoiling, precision straightening, servo feeding, stamping , and scrap handling into one coordinated production system.
For 3C electronic component production, our engineers can configure the feeding and coil processing system according to:
Material type and thickness
Strip width
Stamping speed
Press specifications
Product dimensions
Production volume
Factory layout
The solution can integrate automatic decoiling, precision straightening, servo feeding, stamping automation, and scrap handling into one coordinated production system.
Youyi also provides equipment installation, commissioning, and technical support to help customers achieve stable long-term production.
After commissioning the high-speed coil processing line, the customer achieved more stable production performance for ultra-thin metal strip stamping.
Key improvements included:
More stable material feeding during continuous stamping
Improved consistency of stamped electronic components
Reduced manual material handling
Lower scrap handling workload
Improved workshop cleanliness
More efficient continuous production
Reduced operator intervention during production
The integrated automation system provided a more reliable production process for high-volume manufacturing of precision 3C electronic components.
The High-Speed Coil Processing Line has become an ideal solution for precision metal stamping in the 3C industry. By integrating automatic decoiling, precision leveling, servo feeding, high-speed stamping, and waste collection into one efficient production line, manufacturers can improve productivity, enhance product quality, and reduce operating costs.
For companies producing precision electronic components, investing in a high-speed automated coil processing line provides a reliable foundation for long-term manufacturing competitiveness.
What materials can the high-speed coil processing line process?
It is suitable for stainless steel, copper, aluminum, cold-rolled steel, nickel alloy strips, and other thin metal materials commonly used in the 3C electronics industry.
What material thickness is supported?
The standard configuration processes materials from 0.05 mm to 0.50 mm, with customized solutions available for different production requirements.
Which products are commonly manufactured using this production line?
The line is widely used for connector terminals, shielding covers, battery contacts, precision brackets, electronic clips, camera components, USB connectors, and other precision stamped parts.
Can the production line be customized?
Yes. The equipment can be customized according to material width, thickness, stamping speed, press specifications, and factory layout.
Ready to streamline your production with reliable stamping automation solutions that boost efficiency, reduce downtime!
