2 In 1 Uncoiler Leveler
2 In 1 Uncoiler Leveler
Combine uncoiling and leveling in a single compact unit to reduce floor space, minimize handling steps and stabilize feed for stamping, cutting and forming operations. Models cover ultra-thin to heavy gauges (0.1–6.0 mm) and are available in light, standard and heavy-duty configurations.
| Model | Thickness range | Typical Coil I.D. | Typical Use / Strength |
|---|---|---|---|
| JMGO Type | 0.1 – 1.2 mm | 200 – 520 mm (support rack) | Precision thin sheets, electronics & appliance panels. |
| GO Type | 0.5 – 3.0 mm | 450 – 520 mm | General medium gauge stamping lines. |
| TL Type | 0.5 – 6.0 mm | 450 – 520 mm | Wider thickness range for heavier duty production. |
| HCXL Type | 1.0 – 6.0 mm | 450 – 760 mm (large coils) | Heavy duty, includes coil loading trolley. |
| HTC-1600 | Application-specific | With loading trolley | Battery covers & aluminum parts processing. |

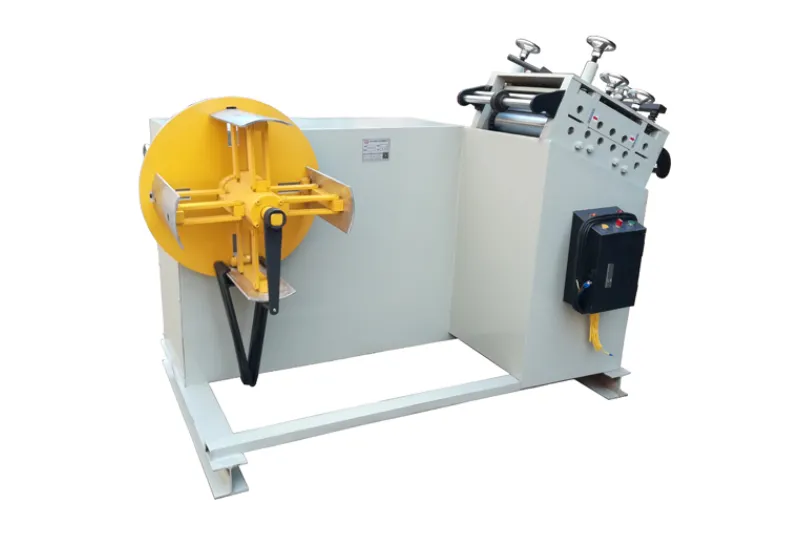

YouYi's 2-in-1 Uncoiler and Straightener integrates uncoiling, leveling, and feeding functions into a compact system designed for stable, precise, and continuous production.
· Space-saving 2-in-1 design combines coil rack and straightener, reducing footprint and simplifying workflow.
· Inverter-controlled uncoiling with electric eye loop control ensures accurate speed synchronization and smooth material handling.
· Hard chrome-plated feed and straightener rollers provide high wear resistance, durability, and consistent leveling precision.
· Hold-down arm, centenary support arm, and cluster gear transmission enhance driving force, alignment accuracy, and feeding stability.
· Four-point hand wheel fine-tuning system supports high-precision straightening and feeding applications.
· Quick-open straightener head enables easy cleaning, inspection, and maintenance, minimizing downtime.
· Wide material adaptability, suitable for thin (0.1–1.2 mm), medium (0.5–6.0 mm), and heavy coils up to 6.0 mm.
· Built with Japanese electromagnetic components and precision rollers for reliable long-term operation and low maintenance.
· Ideal for continuous stamping, feeding, and leveling in electronics, automotive, hardware, and light industrial production.
This integrated system delivers precise leveling, stable feeding, and high efficiency for modern coil-to-press processing lines, helping manufacturers reduce space, improve productivity, and lower overall operating costs.
· Photoelectric Loop Control: Maintains stable coil tension and uninterrupted feeding for consistent stamping input.
· Hard-Chrome Plated Rollers (GCr15 → HRC60–62): Quenched, chrome-plated rollers provide wear resistance and scratch-free flattening.
· Expansion Shaft Options: Manual or hydraulic expansion shafts (common ID range 450–520 mm) to fit standard coils.
· Motor & Power: Motor power varies by model (typical range 1–16 kW depending on capacity and application).
· Control & Drive: Inverter speed control + worm-gear reducers / cluster gears for strong, synchronized transmission.
Designed for precision stamping in:
· New energy components (like lithium battery casings)
· Automotive & motorcycle parts
· Home appliances, 3C electronics, motor stators, refrigerator casings
Combine with YouYi's NC servo feeder or dual-servo feeding systems to build a high-precision, fully automated coil-to-press line. Our servo feeders deliver micron-level accuracy (±0.02–0.03 mm) at high speeds (up to 30 m/min). Recent case studies show seamless integration with presses running over 200 strokes per minute.
Looking to optimize your coil‑to‑press production line? Contact YouYi today for a free consultation—our team will guide you to the ideal coil processing solution tailored to your needs, boosting efficiency and uptime.
Q: What is a 2-in-1 uncoiler leveler?
A: A machine that integrates coil uncoiling and leveling in one unit to save floor space and streamline feeding into presses or cutters.
Q: What gauge range do YouYi models cover?
A: YouYi models span ultra-thin to heavy applications (JMGO 0.1–1.2 mm → HCXL/TL up to 6.0 mm). Confirm model choice by coil weight, desired line speed and downstream takt.
Q: How is feeding stability achieved?
A: Photoelectric loop control combined with inverter/servo drive and synchronized pinch/top-bottom rollers ensures stable tension and precise feeding.
Q: Do you provide installation and commissioning?
A: Yes — on-site installation, commissioning and operator training can be arranged depending on region and contract
LEARN MORE
GO Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-3.0mm
The two machines of the uncoiler and the straightener machine are integrated to reduce the installation space, reducethe excessive links in the precision material straightening process, and maximize the performance of the machine.
TL Type 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.5-6.0mm
Dual-Function Design: Combines decoiling and leveling operations in a single unit, saving floor space and streamlining workflows.
HCXL Type 2 In 1 Uncoiler Leveler With Coil Loading Trolley For Sheet Thickness: 1.0-6.0mm
HCXL 2-in-1 Uncoiler & Leveler for 1.0–6.0mm sheets — integrated decoiler + precision leveling, hydraulic coil loading trolley, customizable widths 300–1000mm. Request quote.
JMGO Type Precision 2 In 1 Uncoiler Leveler For Sheet Thickness: 0.1-1.2mm
This equipment is equipped with a photoelectric sensor that controls the stopping and feeding of materials (to prevent material blockage) comes with a support rack to prevent scratching of thin materials.
HTC-1600 Coil Processing Equipment for Lithium Battery Cover & Aluminum Parts
HTC-1600 heavy-duty 2-in-1 uncoiler & leveler (100–1600mm, 0.5–3.0mm, up to 15,000kg). Engineered for lithium battery covers and aluminum stamping — hydraulic expansion, precision SUJ2 rollers, NC servo feeder.
FAQ
Q: How do I determine the right feeder size for my production line?
A: The feeder size depends on the material width, thickness, and feeding step distance required by your stamping press. Choosing the correct specifications ensures smooth operation and prevents feeding errors or misalignment.
Q: What factors should I consider when choosing a servo feeder machine?
A: When selecting a servo feeder, key factors include feeding accuracy (±0.05mm or better), maximum feeding speed (e.g., 20m/min), material compatibility (stainless steel, aluminum, etc.), load capacity, and control system (PLC or touchscreen). Ensure the machine matches your stamping process requirements.
Q: How long does it take to receive the feeder machine after placing an order?
A: Lead time for delivery typically ranges from 4 to 8 weeks depending on customization, production schedules, and shipping location. Once your order is confirmed, we will provide a more precise delivery estimate.
Q: What are your payment terms?
A: We accepts T/T payment, 30% deposit and 70% balance before shipping
Q: How often should I perform maintenance on my servo feeder machine?
A: Routine maintenance should be conducted weekly for basic cleaning and lubrication, while a more thorough inspection should be done monthly to check for wear on rollers, belts, and electrical components. A full servicing is recommended every 6-12 months depending on usage intensity.
Q: What are the most common issues with feeder machines, and how can I troubleshoot them?
A: Common issues include misalignment, inconsistent feeding accuracy, or motor failure. Check for loose bolts, dirt buildup, or software calibration errors. If problems persist, refer to the user manual or contact technical support.
Q: Do you provide on-site repair services if my machine breaks down?
A: Yes, we offer on-site repair services for major issues, along with remote troubleshooting support for minor problems. For urgent cases, we can dispatch a technician within 24-48 hours, depending on your location.
Q: What's the package of your coil feeding machines?
A: For the coil feeding equipment that go LCL shipping, We will use plastic films wrap on the equiment, and then fix it into a wooden box.
For the large coil lines that go FCL shipment, We will fix each part with ropes on the shipping container and then wrapped them with plastic films.
